Choosing the right pin header not only affects product performance but also impacts manufacturing efficiency and overall cost. For example, selecting a through-hole pin header may increase assembly robustness but could slow down automated soldering compared to surface-mount options. On the other hand, SMT pin headers are more suitable for high-speed pick-and-place assembly lines. Factors such as number of pins, plating type, packaging method (tray, tube, or reel), and pin length should be considered when optimizing for production. Additionally, choosing pre-molded or pre-cut pin header strips can reduce assembly steps and errors. By selecting pin headers that align with both electrical requirements and manufacturing constraints, businesses can achieve cost-effective production while maintaining consistent quality.

Standard pin headers may not always suit every project, especially in complex or space-constrained designs. For these cases, custom pin header solutions provide tailored features such as non-standard pitches, unique plating options, or special housing geometries. A custom pin header can be designed with bent pins, extra-long contacts, keyed shapes, or polarized connectors to meet specific mating and orientation requirements. OEM manufacturers often require custom pin headers to ensure tight fits within enclosures, accommodate special mounting angles, or achieve higher current ratings. Collaborating with experienced pin header suppliers allows designers to balance performance, cost, and manufacturability while meeting all application demands. With fast prototyping and small-batch production options available, it’s now easier than ever to obtain custom pin header assemblies optimized for performance and integration across diverse electronic products.

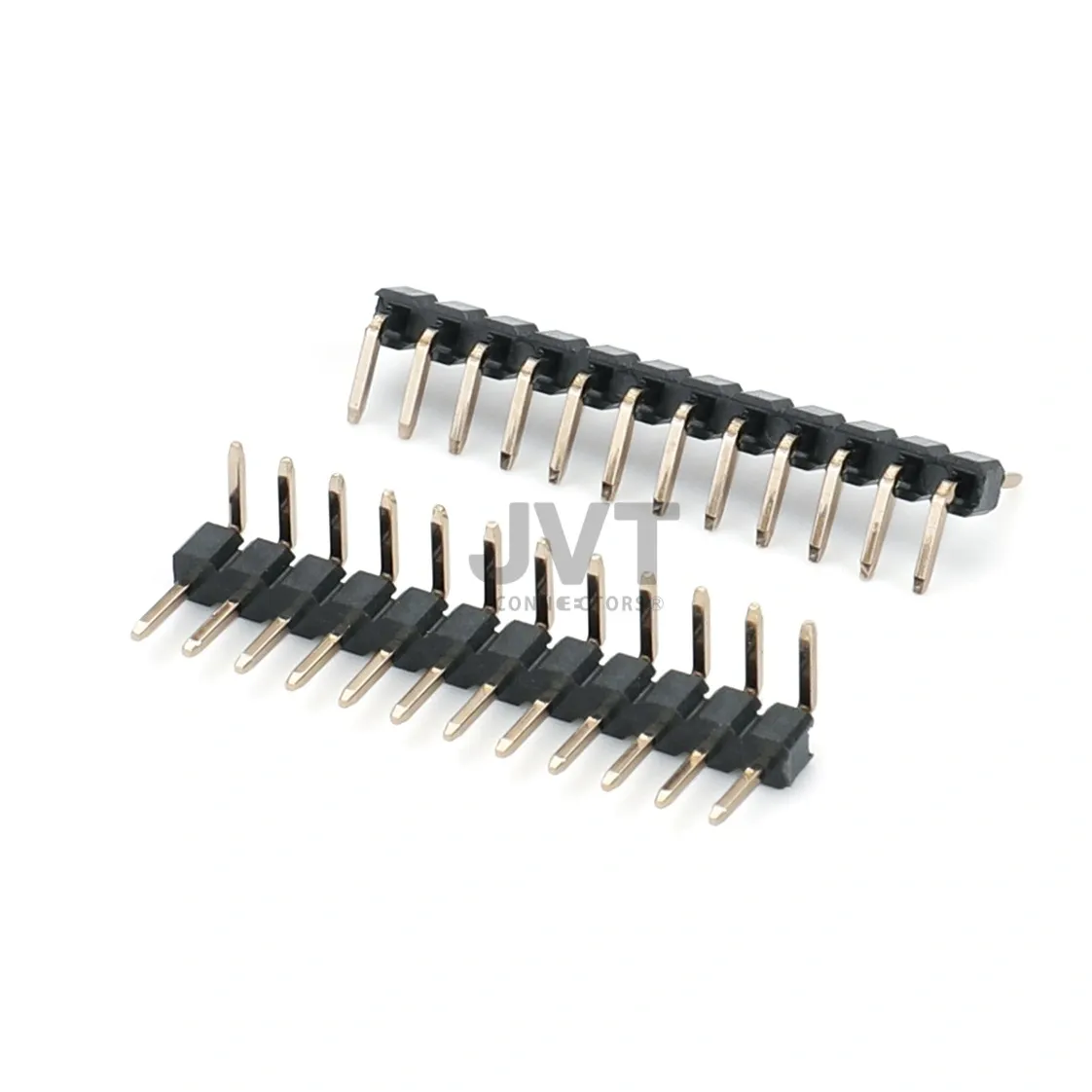

Right-angle pin header connectors are specifically designed to provide a horizontal mating interface, which helps save vertical space in compact or low-profile electronic devices. Instead of connecting cables or daughterboards vertically, right-angle pin headers allow connections to be made parallel to the board surface. This layout is ideal for applications like networking equipment, automotive modules, or handheld devices where internal space is limited. Right-angle pin headers are available in both single-row and multi-row versions, with options for SMT or through-hole mounting. Their structure also offers mechanical strength, as the lateral force from the cable or board is better distributed. Using right-angle pin header connectors is a smart design choice when space efficiency, accessibility, and signal routing flexibility are important.

Pin headers come in a wide range of configurations, enabling PCB designers to create versatile and space-optimized layouts. Whether it’s a single-row pin header for basic connections or a triple-row version for dense signal routing, each configuration offers flexibility to suit specific circuit requirements. Straight pin headers are commonly used when vertical insertion is needed, whereas right-angle pin headers support horizontal connection paths. Additionally, custom pitch sizes, gold-plated contacts, and elevated stacking heights are available for specialized applications. Designers can select from surface-mount or through-hole pin header types based on assembly methods. By choosing the appropriate pin header configuration, engineers ensure reliable performance and easier integration within compact or layered PCB environments. These connectors provide not only mechanical stability but also electrical reliability critical for long-term product operation.
